5-inch AI thermal night vision kit
L5P-2 / L5P-3 / L5P-6
- 5" IPS touchscreen, 1024 × 600
- 256 / 384 / 640 thermal camera
- Pedestrian, vehicle and animal AI
About iSun
In production since 2006, with thermal imaging R&D by VERYTEK AI Tech Limited since 2013, iSun builds automotive infrared night vision systems for the aftermarket, built on long-wave thermal cameras: external LWIR car thermal cameras, AI display hosts and integration hosts for existing vehicle screens. We supply distributors, installers, fleets and OEM brands directly, with no trading company in between, from evaluation kit to repeat orders.
Choose the configuration by vehicle and how the driver uses the screen.
Cars and SUVs Pedestrians and animals beyond the headlights on unlit roads. 5-inch kit
Pickups and 4WD Wildlife on outback and rural roads. All configurations
Trucks and buses A 7-inch view read at a glance from a high cab. 7-inch system
Vans and fleets Feed the thermal view to existing monitors and DVRs. AI box Complete car thermal camera systems, vehicle thermal cameras and AI boxes for the automotive aftermarket.
L5P-2 / L5P-3 / L5P-6
L7P-2 / L7P-3 / L7P-6
256 × 192 / 384 × 288 / 640 × 512
TMC / TM / TMA / TMH / TEK BDA
TA2 / TA3 / TA6, 9 lens options
Product certificates, test reports, granted patents and software copyrights for the vehicle thermal night vision system. Holder details are masked online and available on request.
On the display

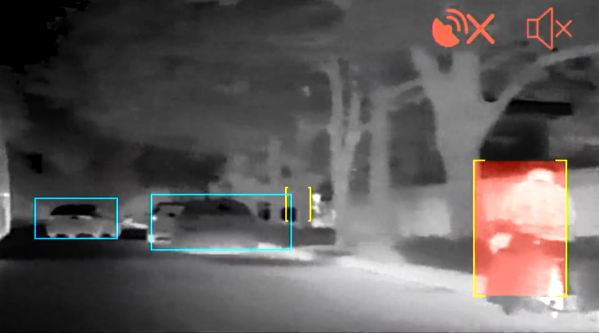

Real screens from the display hosts. The car thermal camera forms the image from heat, and the host adds AI recognition, warning zones and alerts.

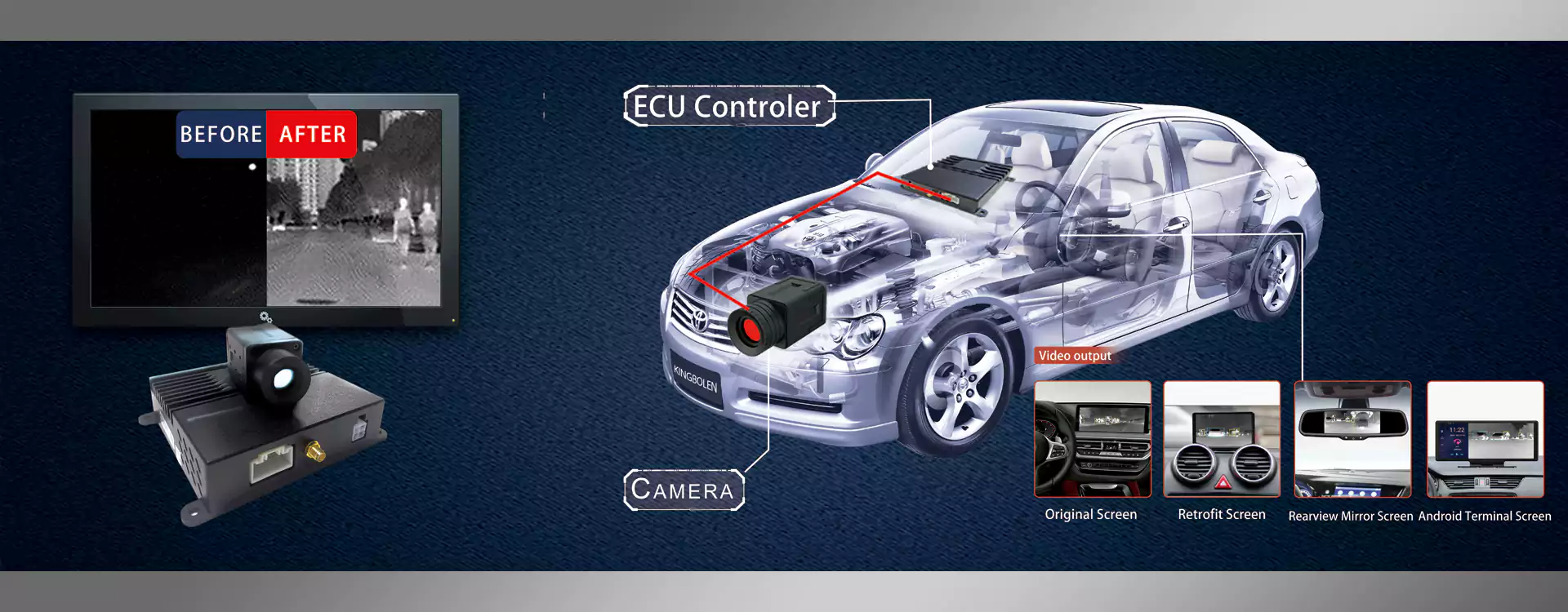

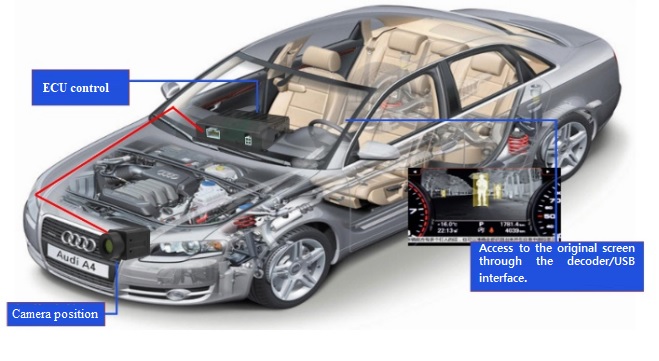

The car thermal camera mounts in the grille, the display host on the dashboard. One cable, one power plug.



Six automotive night vision system configurations with the 9.1 mm lens. Open the configurator
| Thermal camera | 5-inch model | 7-inch model | Lens | Field of view | AI pedestrian | AI vehicle | AI animal |
|---|---|---|---|---|---|---|---|
| 256 × 192 | L5P-2 | L7P-2 | 9.1 mm | 18° × 13° | 100 m | 200 m | 60 m |
| 384 × 288 | L5P-3 | L7P-3 | 9.1 mm | 29° × 22° | 90 m | 190 m | 55 m |
| 640 × 512 | L5P-6 | L7P-6 | 9.1 mm | 45° × 37° | 80 m | 180 m | 50 m |
Reference recognition distances from the product sheet: person taller than 1.7 m, vehicle wider than 2.3 m, animal taller than 1.5 m. Weather, thermal contrast and mounting affect real-world range.
OEM / ODM
Distributors and private-label brands sell the same car thermal camera hardware under their own name. This is how an order usually runs.
Unedited car thermal camera recordings, each labelled with how it was filmed. All videos
Phone recording from the driver seat on an unlit road. The thermal view marks a pedestrian ahead in red.
Driver-seat recording on a dark road. Shows how road geometry and roadside objects read in the thermal view.
Settings, warning zones, sensitivity, palettes and recording playback on the 7-inch touchscreen host.
Turntable view of the 7-inch touchscreen host.
Answers to the questions distributors ask before choosing a car thermal camera. All guides
Updated 2026-11-17 Car thermal camera resolution: 256 vs 384 vs 640 How 256×192, 384×288 and 640×512 car thermal cameras differ in field of view, detail and AI range at the same 9.1 mm lens, and which one to stock. Read the guide
Updated 2026-11-16 Can a thermal camera see through a windshield? No: glass blocks long-wave infrared, so a car thermal camera must be mounted outside. Where to mount it, and why dash cams with night mode are different. Read the guide
Updated 2026-11-17 Thermal vs infrared night vision vs night vision dash cams Thermal, automotive infrared and night vision dash cams compared: which night vision camera for car sees through darkness, glare and fog, and where it mounts. Read the guide
Updated 2026-11-17 What to verify before private-labeling a car thermal night vision system A distributor checklist for private-label car thermal cameras: specs, test reports, market compliance, firmware and mould ownership, warranty and pilot runs. Read the guide More in the buyer guides and product documents.
Manufacturer. iSun is an automotive infrared night vision system manufacturer: every car thermal camera system is designed and built in Shenzhen, and you deal with the manufacturer directly, with no trading company in between, from quotation and samples to production orders.
An automotive night vision camera system built around an external long-wave infrared (thermal) camera mounted in the front grille, connected to a display inside the cabin. The camera forms an image from heat, so pedestrians, animals and vehicles stay visible in darkness and oncoming headlight glare. On-device AI marks people, vehicles and animals and sounds an alert.
Yes. Most buyers start with one or two car thermal camera evaluation kits in the configuration they plan to sell. Sample price and lead time are confirmed in the quotation.
Yes. Start-up video, interface logo and alert voice are listed customization options, packaging is discussed per order, and hardware or alert-logic changes go through an engineering review first.
For seeing people and animals beyond the headlights, yes. A thermal camera for cars needs no illumination and is not blinded by oncoming high beams; near-infrared night vision only sees as far as its own IR lamps reach.
No. Glass blocks long-wave infrared, so the camera sits outside the cabin, usually in the upper opening of the front grille.
The user manual lists a 3-month replacement period for non-human damage and a 2-year repair warranty. Terms for your order are confirmed in the quotation.
Request a quote
Tell us your market, vehicles and quantity. We reply with a configuration, sample terms and pricing.
